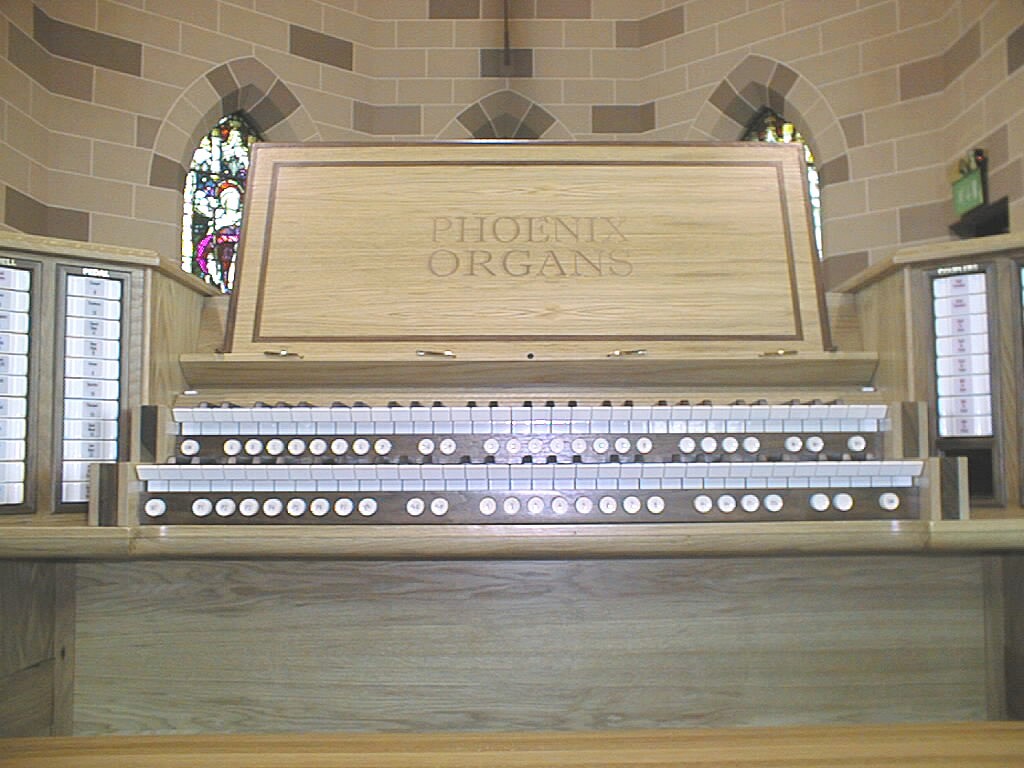

Console in solid carved oak with contrasting walnut
inlays and detailing. Console had to be kept as low as possible.
Twin carved
oak cases for speakers mounted high up on both north and south walls of the
chancel.
 Side view of console. 160 kb, (768 x 1024) |
 Close up of keys and piston rails with walnut detailing on keycheeks, stop surrounds and piston rails 164 kb, (1024 x 768) |
 Keys and pedals 147 kb, (735 x 1003) |
 Rear view of console showing well, into which music desk folds, giving a flat top. 152 kb, (1024 x 768) |
 Looking up to south casework. 157 kb, (768 x 1024) |

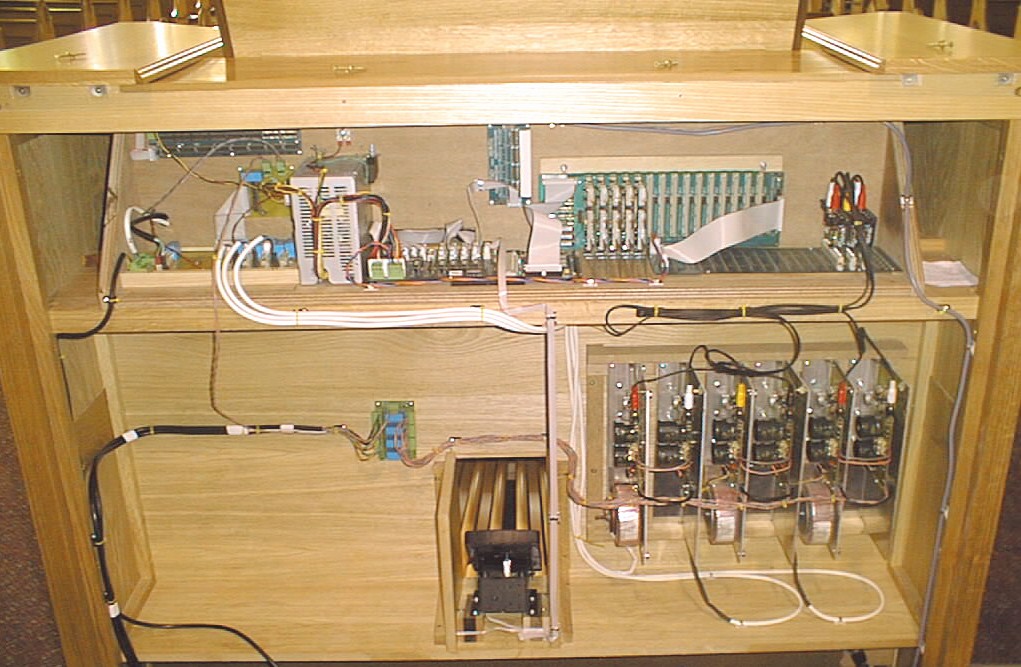

 Inside view with power supplies top left, processor middle top, soundcards and preamps top right, and amplifiers bottom right. 181 kb, (1021 x 667) |
